Compact Compressor - Billet

Description

Our 12V compact Compressor has proven to be a lightweight, reliable and effective solution in a wide array of different motorsports applications all around the world, including The 24 Hours of Le Mans and Daytona, amongst other endurance events.

It combines high efficiency with a compact frame.

About

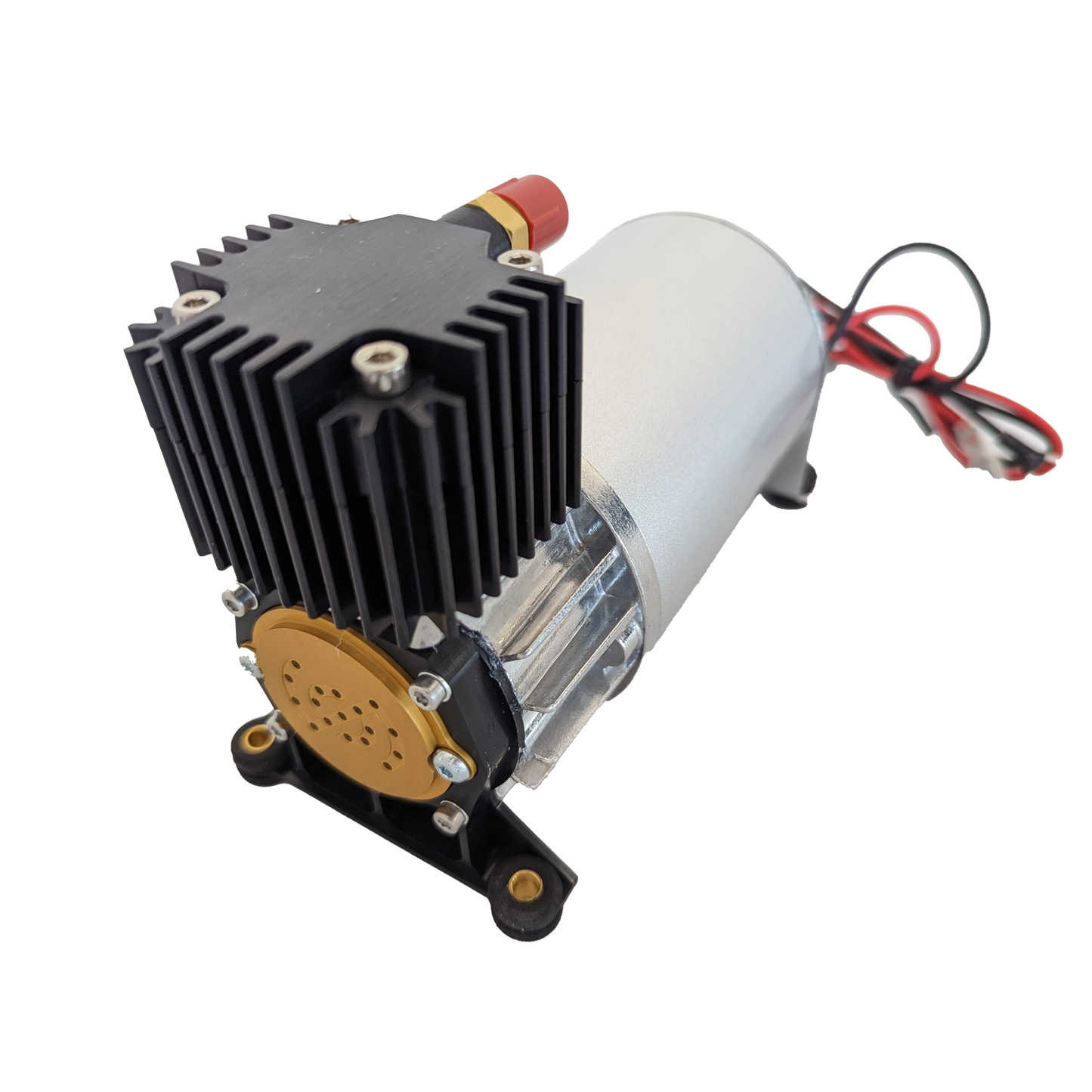

A pro-motorsport version of our Compact Compressor which provides a reliable air supply of up to 10bar for use in pneumatic control applications.

Internal reworking and blue printing allows high reliability and performance with each compressor going through a rigorous sign off procedure. The cylinder head and front plate are CNC machined from high grade aluminium billet. Features include a serviceable air filter element, AV mounting rubbers, and built in cooling vanes.

It's small size allows for flexibility when mounting in a vehicle.

More Details

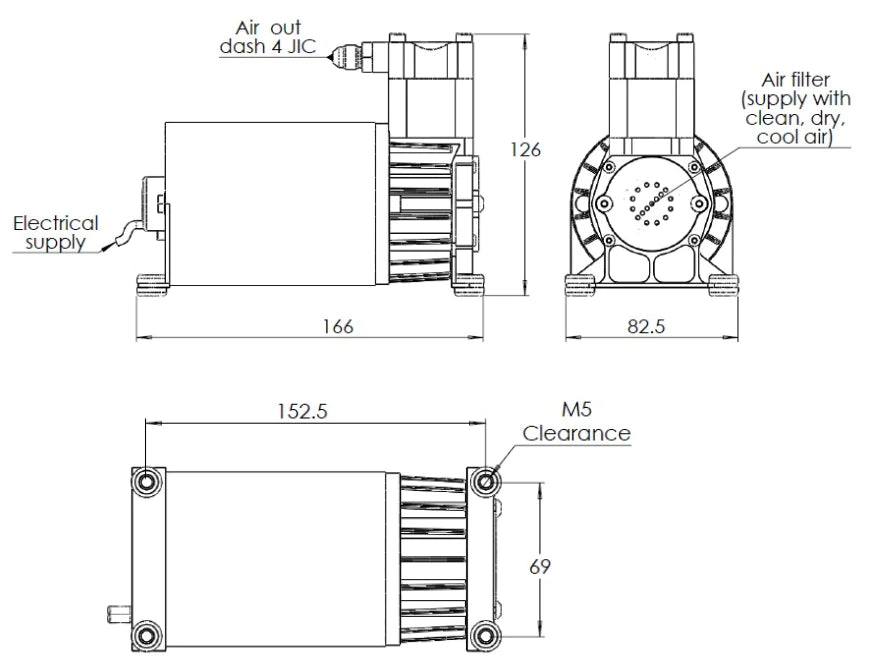

• Four mounting holes for easy installation
• Reliable pressure supply up to 10 bar
• Runs off a 12V vehicle power system
• Air outlet is a standard dash 4 JIC male fitting
• Flying lead or DTP connectivity offered as standard
