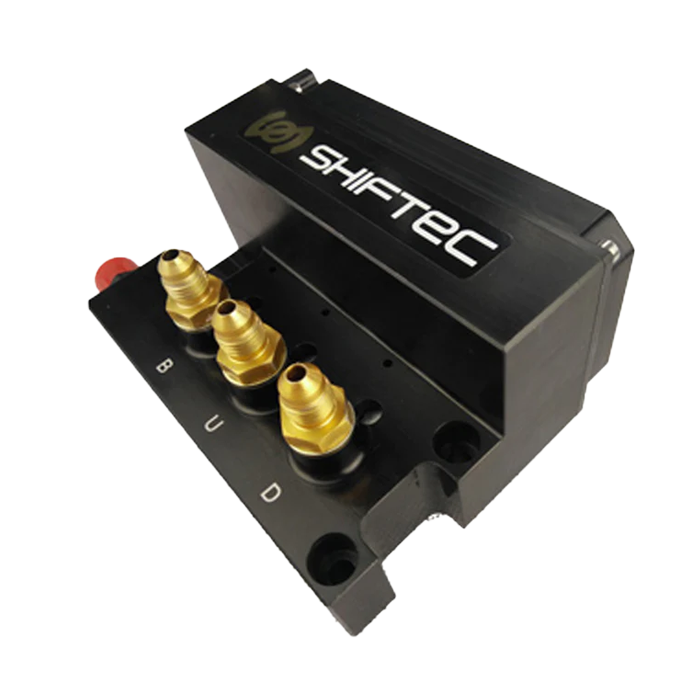

GCU 700 - Integrated Valve Block

GCU 700 - Integrated Valve Block

Regular price £2,308.08
Regular price Sale price £2,308.08
Sale Sold out
Download Technical Bulletin

The GCU700 is tightly packaged pneumatic valve block with a built in sophisticated transmission controller and logger. Weighing in at only 707g, the custom housing is CNC machined from billet aluminium and anodised for extra durability and protection. Connectivity is through a commonly available and durable 26 way connector. Communication link is via a simple direct USB connection and programming is done through easy to use bespoke Shiftec software which features ready set up tabs and templates. Vehicle connectivity may either be hard wired or linked over a CAN system.

GCU700 allows sophisticated closed loop 3 stage control over the shift strategy and the ability to cope with ‘off condition’ shifts as well as options to suit different gearbox lay outs. Inbuilt burst enabled data logging allows GCU700 to maximise data storage space. This combines with full diagnostics and live state machines to allow simple set up and analysis. Data may also be transmitted to vehicle data loggers.

GCU700 is available in two versions, a 3 Way variant which supports mechanical throttle blippers and a 2 Way variant for use with Drive By Wire electronic throttles.

More Details

- Full closed loop 3 stage shift control

- 9 analogue inputs including 2 differential inputs

- 1 dedicated speed input

- 3 valve driver outputs

- Direct USB communication

- Auto upshift strategy

- Off condition shifts (on throttle down shift, off throttle up shift)

- On board burst data logging with built in 2GB capacity

- Sophisticated diagnostics and state machines

- Torque controlled shift functionality

- Fully detailed safety features and fail safe parameters

- Fail/manual mode

- CAN analyser functionality with direct PC logging, transmit, engineering conversion for all formats and bit packing,

- ‘dbc’ import, user friendly interface, user configurable gauges/dials etc, CAN statistic/error analysis

- CAN baud rate selectable

- Clutch interface

- Reverse battery, over-voltage and load dump protection.

- Supports FBW or pneumatic blip – select when ordering

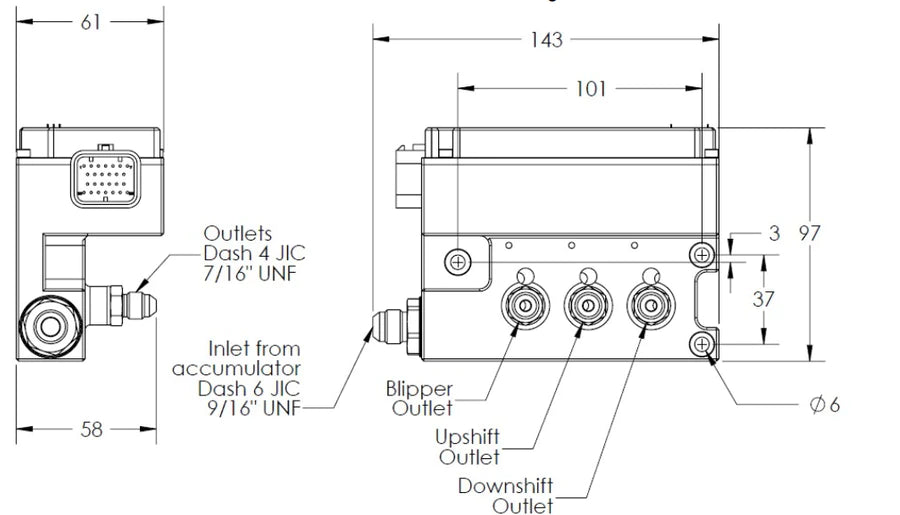

- Filtered dash 6 JIC air feed into block

- Dash 4 JIC pneumatic outputs for gearbox actuator and throttle blipper

- Proven durability in 24hr races
